| General Information |
|
|
| Manufacturer Website Address |
www.supermicro.com |
| Brand Name |
Supermicro |
| Product Model |

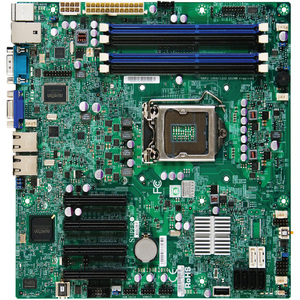

X9SCM-F |
| Description |
The SUPER X9SCM/X9SCM-F/X9SCL/X9SCL-F/X9SCL+-F supports a single Intel Xeon E3-1200 series, 2nd generation Intel Core i3, Pentium, Celeron processor in an LGA 1155 socket. With the Intel Cougar Point chipset built in, the X9SCM/X9SCL series motherboard offers substantial enhancement in system performance and storage capability for entry-level to mid-range servers in a sleek package. This product is intended to be installed and serviced by professional technicians. |
| Product Type |
Server Motherboard |
| Processor & Chipset |
|
|
| Chipset Manufacturer |
Intel |
| Chipset Model |
C204 |
| Total Processor Support |
1 |
| Processor Technology |
Turbo Boost Technology |
| Processor Technology |
Hyper-Threading Technology |
| Processor Technology |
Virtualization Technology |
| Processor Technology |
Enhanced SpeedStep Technology |
| Processor Technology |
Trusted Execution Technology |
| Processor Socket |
Socket H2 LGA-1155 |
| Processor Support |
Core i3 |
| Processor Support |
Xeon |
| Processor Support |
Pentium Dual-core |
| Processor Support |
Celeron Dual-Core |
| 64-bit Processing |
Yes |
| Integrated Processor |
|
|
| Integrated Processor Manufacturer |
Not Applicable |
| Integrated Processor Type |
Not Applicable |
| Integrated Processor Model |
Not Applicable |
| Integrated Processor Speed |
Not Applicable |
| Integrated Processor Cache |
Not Applicable |
| Integrated Processor Core |
Not Applicable |
| Memory |
|
|
| Number of Memory Slots |
4 |
| Memory Form Factor |
DIMM |
| Maximum Memory |
32 GB |
| Memory Standard |
DDR3-1333/PC3-10600 |
| Memory Standard |
DDR3-1066/PC3-8500 |
| Memory Standard |
DDR3-800/PC3-6400 |
| Memory Technology |
DDR3 SDRAM |
| I/O Controller |
|
|
| Controller Type |
Serial ATA/150 |
| Controller Type |
Serial ATA/300 |
| RAID Support |
Yes |
| RAID Levels |
0 |
| RAID Levels |
1 |
| RAID Levels |
5 |
| RAID Levels |
1+0 |
| Video |
|
|
| Onboard Video |
Yes |
| Graphics Controller Manufacturer |
Matrox |
| Graphics Controller Model |
G200eW |
| Network & Communication |
|
|
| Gigabit Ethernet |
Yes |
| I/O Expansions |
|
|
| Number of Total Expansion Slots |
4 |
| PCI Express Standard |
PCI Express 2.0 |
| Total Number of PCI Express Slots |
4 |
| Number of PCI Express x4 Slots |
2 |
| Number of PCI Express x8 Slots |
2 |
| Storage |
|
|
| Number of SATA Interfaces |
6 |
| Back Panel Interfaces |
|
|
| Total Number of USB Ports |
2 |
| Number of USB 2.0 Ports |
2 |
| Serial Port |
Yes |
| VGA |
Yes |
| Network (RJ-45) |
Yes |
| Number of Network (RJ-45) Ports |
2 |
| PS/2 Port |
Yes |
| Number of PS/2 Ports |
2 |
| Onboard Interfaces |
|
|
| Total Number of Onboard USB Ports |
7 |
| Onboard Serial Header |
Yes |
| Onboard LEDs Header |
Yes |
| Controls/Indicators |
|
|
| Buttons & Keys |
Reset |
| Buttons & Keys |
Power |
| Power Description |
|
|
| Power Supply Support |
ATX |
| Physical Characteristics |
|
|
| Form Factor |
Micro ATX |
| Width |
9.60" |
| Depth |
9.60" |
| Miscellaneous |
|
|
| Package Contents |
X9SCM-F Server Motherboard 1 x Supermicro Mainboard 6 x SATA cables 1 x I/O shield 1 x Supermicro CD containing drivers and utilities 1 x User's Manual |
| Certifications & Standards |
CE FCC |
| Green Compliance |
Yes |
| Green Compliance Certificate/Authority |
RoHS-6 |
